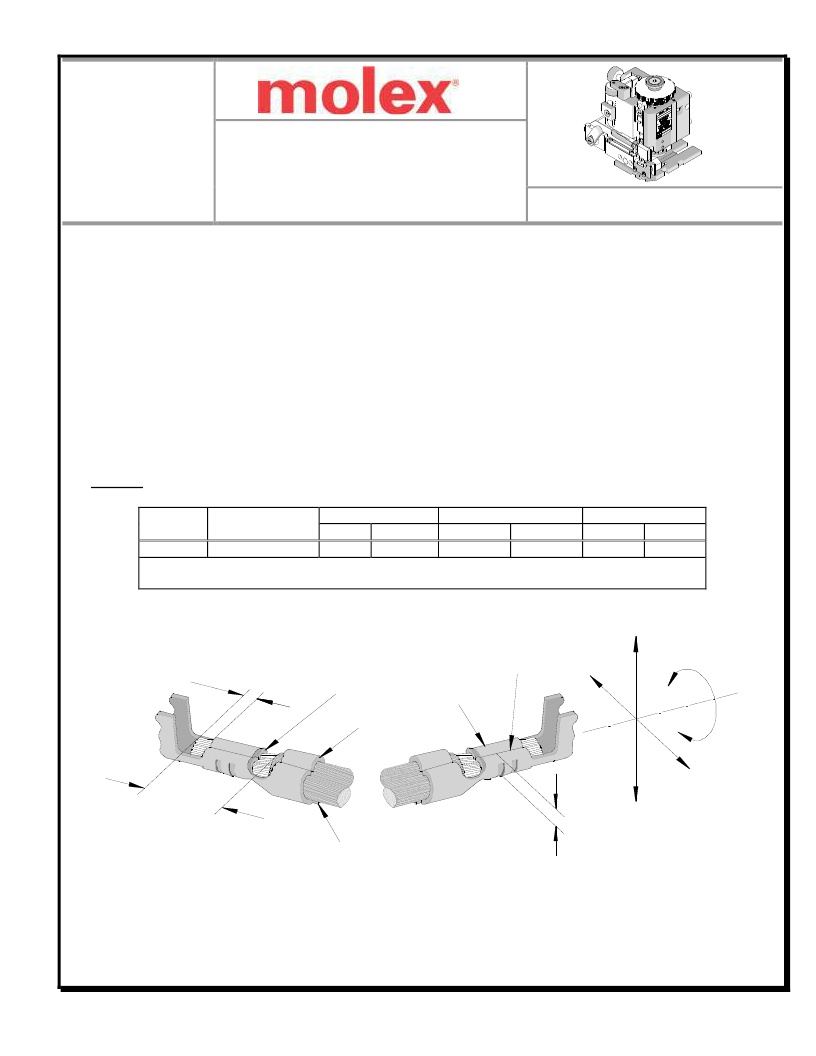

Mini-Mac Applicator for Flat Blade Crimp Terminals
Mini-Mac
Applicator
Application Tooling
Specification Sheet
Order No. 63894-1200
FEATURES
Directly adapts to most automatic wire processing machines
Applicator designed to industry standard mounting and shut height 135.80mm (5.346")
Quick set-up time; plus the crimp height, track and feed adjustments can be set without removing the applicator
from the press
Fine adjustment allows users to achieve target with little effort by adjusting in increments of .015mm (.0006") for
conductor crimp height and .063mm (.0025") for insulation height
Independent adjustment rings allow users to quickly adjust the conductor or insulation crimp height without
affecting each other.
SCOPE
Products: Flat Blade Crimp Terminal, 20 AWG Double Crimp applications.
Terminal
Series No.
Terminal Order No
Wire Size Insulation Diameter Max. Strip Length
AWG mm2 mm In. mm In.
1508
05-06-0117 20 + 20 0.50+ 0.50 3.55 .140 3.96-5.35
For 16-20 AWG single wire applications 63894-1000 is recommended.
For 14 AWG and double wire applications 63894-1100 is recommended.
.156-.218
DEFINITION OF TERMS
BEND UP
BRUSH
BELL
MOUTH
CONDUCTOR
CRIMP
SEAM
ROLLING
INSULATION
CRIMP
STRIP
LENGTH
CUT-OFF
BEND
DOWN
TWISTING
TAB
CRIMP HEIGHT
The above terminal drawing is a generic terminal representation. It is not an image of a terminal listed in the
scope.
Doc No: ATS-638941200 Release Date: 07-29-09
Revision: C Revision Date: 09-06-10
UNCONTROLLED COPY
Page 1 of 5
